Takeoff Weight
724 g
Dimensions
Folded (without propellers): 214.19×100.63×89.17 mm (L×W×H)
Unfolded (without propellers): 266.11×325.47×106.00 mm (L×W×H)
Max Ascent Speed
10 m/s
Max Descent Speed
10 m/s
Max Horizontal Speed
At sea level, in windless conditions:
21 m/s*

At sea level, with 6 m/s tailwind, while flying in the same direction as the wind:
27 m/s*

* Measured in a wind tunnel test environment when taking off from an altitude of 0 meter and ascending vertically to a height of 1.5 meters above the ground in Sport mode, and is for reference only. Always pay attention to reminders on the camera view during your flight.
* 19 m/s in the EU region.
Max Takeoff Altitude
6000 m
Max Flight Time
45 minutes

Measured by DJI Air 3S flying forward at a constant speed of 32.4 kph in a windless environment at sea level, with Obstacle Avoidance Action set to Brake, in photo mode, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.
Max Hovering Time
41 minutes

Measured by DJI Air 3S hovering in a windless environment at sea level, with Obstacle Avoidance Action set to Brake, in photo mode, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.
Max Flight Distance
32 km

Measured by DJI Air 3S flying forward at a constant speed of 48.6 kph in a windless environment at sea level, with Obstacle Avoidance Action set to Brake, in photo mode, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.
Max Wind Speed Resistance
12 m/s
Max Pitch Angle
36°
Operating Temperature
-10° to 40° C (14° to 104° F)
Global Navigation Satellite System
GPS + Galileo + BeiDou
Hovering Accuracy Range
Vertical:
±0.1 m (with vision positioning)
±0.5 m (with satellite positioning)

Horizontal:
±0.3 m (with vision positioning)
±0.5 m (with satellite positioning)
Internal Storage
42 GB
Class
C1 (EU)

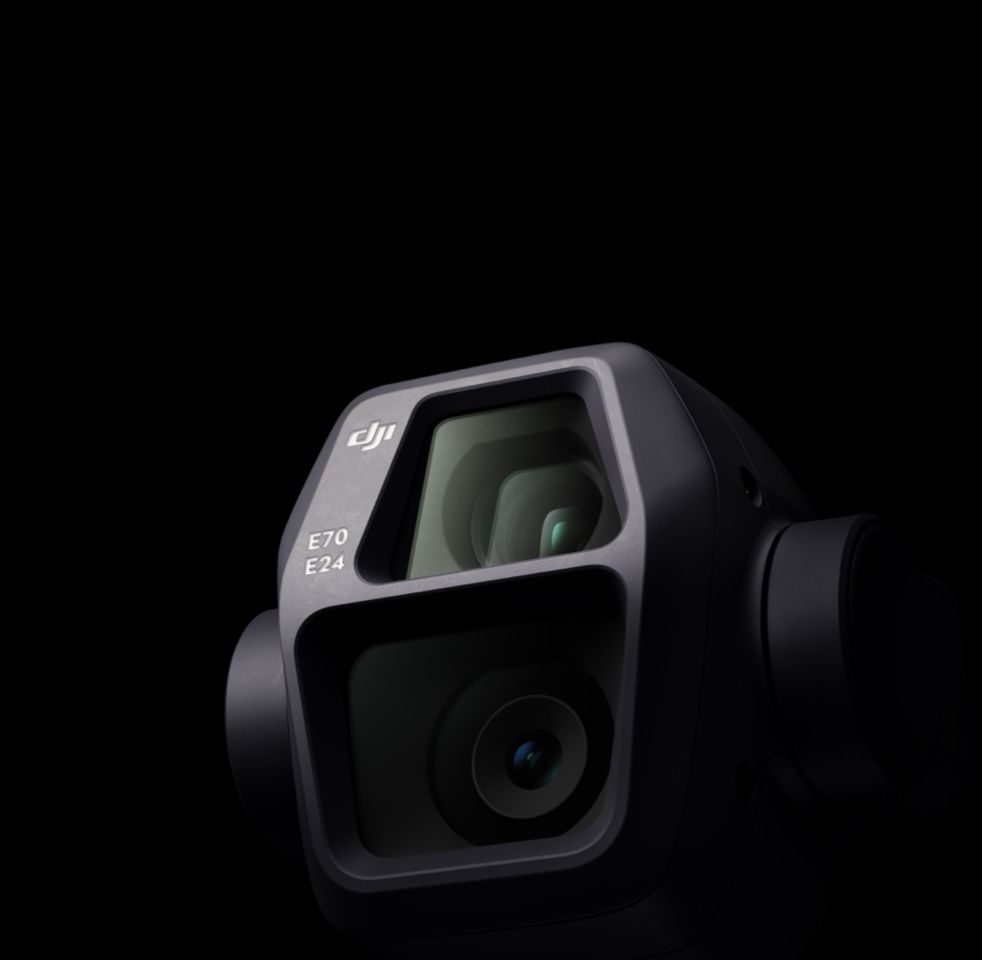

Camera
Image Sensor
Wide-Angle Camera: 1-inch CMOS, 50MP Effective Pixels
Medium Tele Camera: 1/1.3-inch CMOS, 48MP Effective Pixels
Lens
Wide-Angle Camera
FOV: 84°
Format Equivalent: 24 mm
Aperture: f/1.8
Focus: 0.5 m to ∞

Medium Tele Camera
FOV: 35°
Format Equivalent: 70 mm
Aperture: f/2.8
Focus: 3 m to ∞
ISO Range
Video
Normal:
100-12800 (Normal)
100-3200 (D-Log M)
100-3200 (HLG)
Slow Motion:
100-6400 (Normal)
100-3200 (D-Log M)
100-3200 (HLG)

100-6400 (12 MP)
100-3200 (48 MP and 50 MP)
Shutter Speed
Wide-Angle Camera
12MP Photo: 1/8000-2 s (2.5-8 s for simulated long exposure)
50MP Photo: 1/8000-2 s

Medium Tele Camera
12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure)
48MP Photo: 1/8000-2 s
Max Image Size
Wide-Angle Camera: 8192×6144
Medium Tele Camera: 8064×6048
Still Photography Modes
Wide-Angle Camera
Single Shot: 12 MP and 50 MP
Burst Shooting: 12 MP, 3/5/7 frames; 50 MP, 3/5 frames
Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames; 50 MP, 3/5 frames at 0.7 EV step
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 50 MP, 5/7/10/15/20/30/60 s

Medium Tele Camera
Single Shot: 12 MP and 48 MP
Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5 frames
Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames; 48 MP, 3/5 frames at 0.7 EV step
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s
Photo Format
JPEG/DNG (RAW)
Video Resolution
Wide-Angle Camera/Medium Tele Camera:
H.264/H.265
4K: 3840×2160@24/25/30/48/50/60/120*fps
FHD: 1920×1080@24/25/30/48/50/60/120*/240*fps
2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps

* Recording frame rates. The corresponding video plays as a slow-motion video. Slow-motion videos and 4K video recordings only support H.265 encoding.
Video Format
MP4 (MPEG-4 AVC/H.264, HEVC/H.265)
Max Video Bitrate
H.264/H.265: 130 Mbps
Supported File System
exFAT
Color Mode and Sampling Method
Wide-Angle/Medium Tele Camera
Normal (FHD/2.7K): 8-bit 4:2:0 (H.264)
Normal (FHD/2.7K): 10-bit 4:2:0 (H.265)
HLG/D-Log M (FHD/2.7K): 10-bit 4:2:0 (H.264/H.265)
Normal/HLG/D-Log M (4K): 10-bit 4:2:0 (H.265)
Digital Zoom
Wide-Angle Camera: 1-2.9x
Medium Tele Camera: 3-9x
Gimbal
Stabilization
3-axis mechanical gimbal (tilt, roll, pan)
Mechanical Range
Tilt: -135° to 70°
Roll: -50° to 50°
Pan: -27° to 27°
Controllable Range
Tilt: -90° to 60°
Pan: -5° to 5°
Max Control Speed (tilt)
100°/s
Angular Vibration Range
±0.0037°
Sensing
Sensing Type
Omnidirectional binocular vision system, supplemented with forward-facing LiDAR and an infrared sensor at the bottom of the aircraft
Forward
Measurement Range: 0.5-18 m
Detection Range: 0.5-200 m
Effective Sensing Speed: Flight Speed ≤ 15 m/s
FOV: Horizontal 90°, Vertical 72°
Backward
Measurement Range: 0.5-18 m
Effective Sensing Speed: Flight Speed ≤ 14 m/s
FOV: Horizontal 90°, Vertical 72°
Lateral
Measurement Range: 0.5-30 m
Effective Sensing Speed: Flight Speed ≤ 14 m/s
FOV: Horizontal 90°, Vertical 72°
Upward
Measurement Range: 0.5-18 m
Effective Sensing Speed: Flight Speed ≤ 6 m/s
FOV: Front and Back 72°, Left and Right 90°
Downward
Measurement Range: 0.3-14 m
Effective Sensing Speed: Flight Speed ≤ 6 m/s
FOV: Front and Back 106°, Left and Right 90°
Operating Environment
Forward, Backward, Left, Right, and Upward:
Surfaces with discernible patterns and adequate lighting (lux > 1)
Downward:
Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g., walls, trees, people), and adequate lighting (lux > 1)
3D Infrared Sensor
Forward-Facing LiDAR
Measurement Range (nighttime): 0.5-25 m (reflectivity > 10%)
FOV: Up and Down 60°, Left and Right 60°

Downward-Facing Infrared Sensor
Measurement Range: 0.3-8 m (reflectivity > 10%)
FOV: Front and Back 60°, Left and Right 60°
Video Transmission
Video Transmission System
O4
Live View Quality
Remote Controller:
1080p/30fps, 1080p/60fps
Operating Frequency
2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz

Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Transmitter Power (EIRP)
2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)

5.1 GHz:
< 23 dBm (CE)

5.8 GHz:
< 33 dBm (FCC)
< 30 dBm (SRRC)
< 14 dBm (CE)
Max Transmission Distance (unobstructed, free of interference)
FCC: 20 km
CE: 10 km
SRRC: 10 km
MIC: 10 km

Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in the app during your flight.
Max Transmission Distance (unobstructed, with interference)
Strong Interference: Urban landscape, approx. 1.5-4 km
Medium Interference: Suburban landscape, approx. 4-10 km
Low Interference: Suburb/Seaside, approx. 10-20 km

Measured under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.
Max Transmission Distance (obstructed, with interference)
Low Interference and Obstructed by Buildings: Approx. 0-0.5 km
Low Interference and Obstructed by Trees: Approx. 0.5-3 km

Measured under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.
Max Download Speed
O4:
10 MB/s (with DJI RC-N3)
10 MB/s (with DJI RC 2)
Wi-Fi 5: 30 MB/s*

* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.
Lowest Latency
Aircraft + Remote Controller: Approx. 120 ms

Depending on the actual environment and mobile device.

Antenna
6 antennas, 2T4R
Wi-Fi
Protocol
802.11 a/b/g/n/ac
Operating Frequency
2.400-2.4835 GHz
5.725-5.850 GHz
Transmitter Power (EIRP)
2.4 GHz:
< 20 dBm (FCC/CE/SRRC/MIC)

5.8 GHz:
< 20 dBm (FCC/SRRC)
< 14 dBm (CE)
Bluetooth
Protocol
Bluetooth 5.2
Operating Frequency
2.400-2.4835 GHz
Transmitter Power (EIRP)
< 10 dBm

Battery
Capacity - 4276 mAh
Weight - Approx. 247 g
Nominal Voltage - 14.6 V
Max Charging Voltage - 17.2 V
Type - Li-ion 4S

Energy
62.5 Wh
Charging Temperature
5° to 40° C (41° to 104° F)

Charging Time
Approx. 80 minutes (with DJI 65W Portable Charger)
Approx. 60 minutes (with DJI 100W USB-C Power Adapter and Battery Charging Hub)
Charger

Input
DJI 65W Portable Charger:
100-240 V (AC), 50-60 Hz, 2 A

DJI 100W USB-C Power Adapter:
100-240 V (AC), 50-60 Hz, 2.5 A

Output
DJI 65W Portable Charger:

USB-C
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 4.3 A
20 V, 3.25 A
5-20 V, 3.25 A

USB-A
5 V, 2 A

DJI 100W USB-C Power Adapter:
Max 100 W (total)

When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load.
Rated Power
DJI 65W Portable Charger: 65 W
DJI 100W USB-C Power Adapter: 100 W
Battery Charging Hub

Input
USB-C: 5-20 V, max 5 A

Output (power accumulation)
Battery Port: 12-17.2 V, 3.5 A

Output (charging)
Battery Port: 12-17.2 V, max 5 A

Output (USB)
USB-C:
5 V, 3 A
9 V, 5 A
12 V, 5 A
15 V, 5 A
20 V, 4.1 A

Charging Type
Three batteries charged in sequence

Compatibility
DJI Air 3 Intelligent Flight Battery
DJI Air 3S Intelligent Flight Battery

Car Charger - Input
Car Power Input: - 12.7-16 V, 6.5 A, rated voltage 14 V (DC)

Output
USB-C:
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 4.3 A
20 V, 3.25 A
5-20 V, 3.25 A

USB-A: 5 V, 2 A
Rated Power  - 65 W
Charging Temperature -5° to 40° C (41° to 104° F)

Storage
Recommended microSD Cards
Lexar 1066x 64GB V30 U3 A2 microSDXC
Lexar 1066x 128GB V30 U3 A2 microSDXC
Lexar 1066x 256GB V30 U3 A2 microSDXC
Lexar 1066x 512GB V30 U3 A2 microSDXC
Kingston Canvas GO! Plus 64GB V30 U3 A2 microSDXC
Kingston Canvas GO! Plus 128GB V30 U3 A2 microSDXC
Kingston Canvas GO! Plus 256GB V30 U3 A2 microSDXC
Kingston Canvas GO! Plus 512GB V30 U3 A2 microSDXC

• DJI RC-N3 Remote Controller - Max Operating Time
• Without Charging Any Mobile Device: 3.5 hours - When Charging a Mobile Device: 1.5 hours
• Max Supported Mobile Device Size - 180×86×10 mm (L×W×H)
• Operating Temperature - -10° to 40° C (14° to 104° F)
• Charging Temperature - 5° to 40° C (41° to 104° F)
• Charging Time - 2 hours
• Charging Type - It is recommended to use a 5V/2A charger.
• Battery Capacity - 9.36 Wh (3.6 V, 2600 mAh)
• Weight - Approx. 320 g
• Dimensions - 104.2×150×45.2 mm (L×W×H)
• Supported Mobile Device Port Type - Lightning, USB-C, Micro-USB

Using a mobile device with a Micro-USB port requires the DJI RC-N Series RC Cable (Standard Micro USB Connector), which is sold separately.
Video Transmission Operating Frequency
2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz

Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Video Transmission Transmitter Power (EIRP)
2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)

5.1 GHz:
< 23 dBm (CE)

5.8 GHz:
< 33 dBm (FCC)
< 14 dBm (CE)
< 30 dBm (SRRC)
